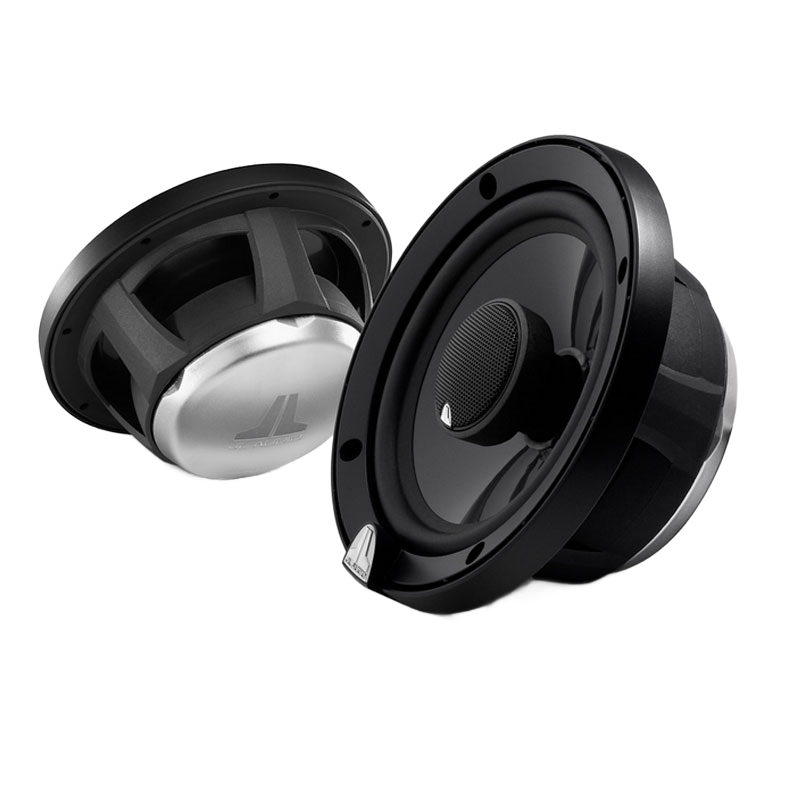

JL Audio C3-600 Evolution C3 Series 6" 75W RMS (225W Peak Power Handling) 4 Ohms, 2-Way Convertible Component System with Silk Dome Tweeters
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) C3-600cw Woofers
- • (2) C3-100ct Tweeters
- • (2) C3-600-XO Crossovers

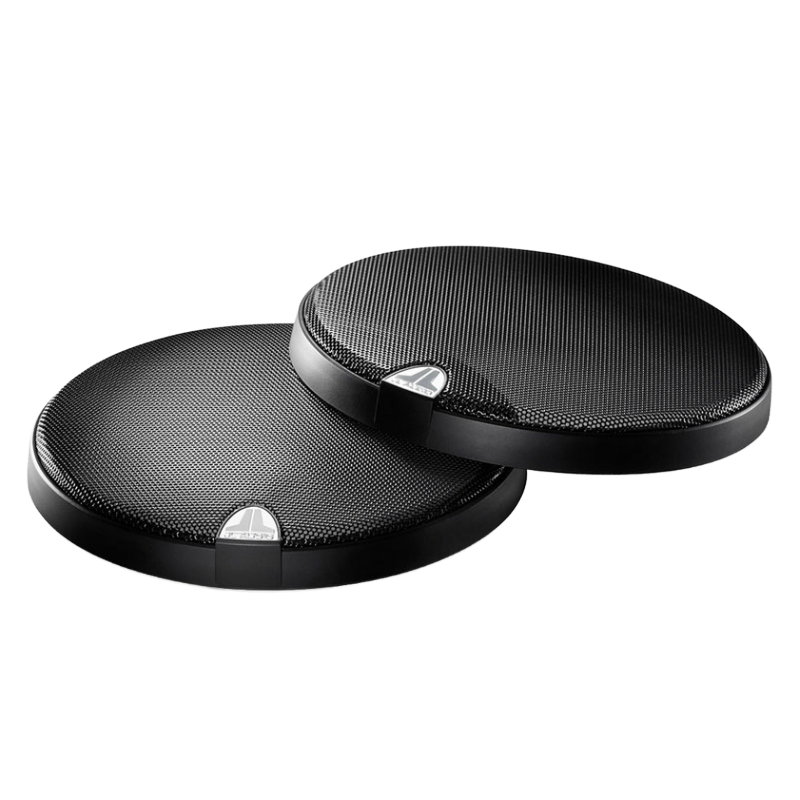

- • (2) Woofer grilles
- • (2) Flush mount tweeter housings
- • (2) Surface mount tweeter housings
- • (2) Coaxial mount tweeter fixtures
- • (2) Metal spring clips for tweeter fixtures
- • (2) M4x30mm Pan-head machine screws
- • (2) Crimp-on 0.187" Male quick slides
- • (2) Crimp-on 0.110" Male quick slides
- • (2) Crimp-on 0.25" Female quick slides
- • (2) Crimp-on 0.187" Female quick slides
- • (4) Crimp-on 0.110" Female quick slides
- • (12) Crimp-on spade connectors
- • (4) 7/8" Flat head self-tapping screws
- • (12) 1-1/8" Pan head self-tapping screws
- • (8) Speed clips
- • Woofer cutout template
- • Owner's Manual
Why Choose JL Audio C3-600 Component System?
Premium 6-Inch Component Speakers for Superior Sound Quality
Upgrade your factory sound system with the JL Audio C3-600 Evolution Series 6-inch Component Speaker System, engineered for exceptional sound quality and installation flexibility. Featuring 6-inch mineral-filled polypropylene woofers with durable butyl rubber surrounds, the C3-600 delivers accurate mid-bass, detailed midrange, and long-lasting reliability. Whether you're replacing factory speakers or building a premium audio system, the C3-600 offers outstanding performance with minimal distortion.
Elevated Frame Cooling and Silk Dome Tweeters
The JL Audio C3-600 incorporates Elevated Frame Cooling (EFC™) technology to improve airflow around the woofer's voice coil, increasing power handling and reducing heat during extended listening sessions. Its 1-inch silk dome tweeters produce smooth, natural highs with excellent clarity and can be installed in either coaxial or separate component configurations. Ferrofluid cooling further enhances tweeter durability and consistent high-frequency performance.
Premium Crossovers for Accurate, High-Output Performance
Designed for audiophile-grade sound, the JL Audio C3-600 includes premium external crossover networks that optimize signal distribution between the woofers and tweeters for superior imaging and tonal balance. Rated at 75 Watts RMS (225 Watts Peak) at 4 Ohms, with a 50 Hz–25 kHz frequency response and 89.5 dB sensitivity, the C3-600 delivers powerful, full-range audio with impressive detail, dynamic output, and low distortion—making it an excellent choice for high-performance car audio systems.
JL Audio C2-600 vs C3-600 | Which JL Audio 6-Inch Component Speaker Is Best?
| JL Audio 6-Inch Component Speaker Comparison |
JL Audio C2-600
6-Inch 2-Way Component Speaker System
BEST VALUE UPGRADE
- • 60 Watts RMS
- • 225 Watts Peak Power
- • 0.75" Silk Dome Tweeters
- • Mineral-Filled Polypropylene Woofer
- • External Passive Crossovers
- • 91 dB Sensitivity
- • Easy to Drive with Factory or Aftermarket Power
- • Excellent Factory Speaker Upgrade
|
JL Audio C3-600
6-Inch Convertible Component Speaker System
BEST SOUND QUALITY
- • 75 Watts RMS
- • 225 Watts Peak Power
- • 1" Silk Dome Tweeters
- • DMA-Optimized Woofer Motor
- • Premium External Crossovers
- • Convertible Component/Coaxial Design
- • Cast-Alloy Basket with Elevated Frame Cooling
- • Ideal for Amplified & DSP Systems
|
Which JL Audio Speaker Should You Choose?
Choose the JL Audio C2-600 if you're looking for the best value. Its high sensitivity, smooth silk dome tweeters, and 60W RMS power handling make it an excellent upgrade over factory speakers while remaining easy to power.
Choose the JL Audio C3-600 if you're building a premium sound quality system. Its larger 1-inch silk tweeters, DMA-optimized woofer motor, cast-alloy frame, premium crossover network, and convertible design deliver better imaging, tighter mid-bass, and greater tuning flexibility when paired with a quality amplifier.
JL Audio C3-600 Recommended Amplifiers | Best Amp Pairings for Maximum Clarity & Speaker Performance
JL Audio C3-600 Amplifier Matching Guide
Real-World Amplifier Recommendations Based on User Experiences, Installer Feedback & JL Audio Specifications
Amplifier Matching Overview
C3-600 Power Rating: 75W RMS Per Speaker
Speaker Type: 6-Inch Convertible 2-Way Component Speaker System
Recommended Amp Range: 25W – 150W RMS Per Channel @ 4Ω
Ideal Power Target: 75W – 100W RMS Per Channel @ 4Ω
Goal: Maximum sound quality, superior imaging, tighter mid-bass, and greater dynamic range with clean amplifier power.
What Real Owners Commonly Report
• Most owners report the C3-600 truly comes alive when paired with a quality aftermarket amplifier instead of factory radio power.
• Installers commonly recommend 75W–100W RMS per channel to unlock the speaker's full soundstage, imaging, and mid-bass performance.
• Users upgrading from factory power consistently notice cleaner vocals, smoother highs, and improved instrument separation.
• Proper amplifier headroom helps the C3-600 maintain clarity at high listening levels while minimizing distortion.
Top Recommended Amplifiers for JL Audio C3-600
JL Audio JD400/4: One of the most popular pairings for the C3-600. Delivers 75W RMS per channel, matching the speakers perfectly while providing excellent clarity and headroom.
JL Audio RD400/4: Premium Class D amplifier producing 75W RMS per channel with outstanding efficiency, low distortion, and exceptional overall sound quality.
JL Audio XDM400/4: Compact marine-grade amplifier delivering 75W RMS per channel, ideal for tight installations while offering excellent durability and clean output.
Amplifier Power Guide
Factory Radio Only: 15W – 25W RMS Per Channel
Entry-Level Upgrade: 50W – 75W RMS Per Channel
Ideal Match: 75W – 100W RMS Per Channel
Maximum Recommended: 150W RMS Per Channel (properly tuned)
Gain & Tuning Recommendations
Gain Setting: Adjust amplifier gains to provide approximately 75W–100W RMS per speaker without clipping.
High-Pass Filter (HPF): 80Hz when using a subwoofer.
HPF Without Subwoofer: 60Hz–80Hz to improve mid-bass response and speaker protection.
Bass Boost: Keep disabled for the cleanest and most accurate sound.
EQ: Start with a flat EQ and use the crossover's tweeter and midrange adjustments before making major EQ changes.
Recommended System Pairings
Factory Plus Upgrade: C3-600 + Factory Radio
Best Value System: C3-600 + JL Audio JD400/4
Balanced JL Audio System: C3-600 + JL Audio RD400/4 + JL Audio W3v3 Subwoofer
Premium Compact System: C3-600 + JL Audio XDM400/4 + JL Audio Microsub+
Why Amplify the JL Audio C3-600?
Superior Imaging: Delivers a wider, more realistic soundstage with precise instrument placement.
Tighter Mid-Bass: Better amplifier control produces faster, more accurate bass response.
Cleaner Highs: Silk dome tweeters perform with greater detail and lower distortion.
Higher Output: Plays louder while maintaining exceptional clarity.
Greater Dynamic Range: Extra amplifier headroom allows music to sound effortless and highly detailed.
Pro Tip: Although the JL Audio C3-600 is rated for 75W RMS, many experienced installers recommend pairing it with a clean amplifier delivering 75W to 100W RMS per channel. Proper gain adjustment provides additional headroom, tighter bass, improved dynamics, and cleaner sound without risking speaker damage.
Frequently Asked Questions (FAQ)
- • Why does the tweeter keep falling out or spinning when I try to mount it inside the woofer cone?
You are missing the locking pin mechanism. When converting the C3-600 into a coaxial setup, you must insert the tweeter post through the woofer center, push down firmly, and twist it clockwise until it clicks into place to lock it against the frame.
- • Where do I connect the phase plug or tweeter wires when running the C3-600 in a separate component configuration?
When running separate components, remove the center tweeter post and screw the solid metal phase plug into the woofer's center core. The tweeter must then be wired directly back to the "Tweeter Out" terminals on the external crossover box.
- • Why do these 6-inch woofers leave massive air gaps and screw misalignments in my standard 6.5-inch factory door cutouts?
The C3-600 is a true 6.0-inch speaker, making it slightly smaller than standard 6.5-inch or 6.75-inch drivers. To prevent air gaps that kill bass response, you must install the multi-hole ABS adapter plates included by JL Audio in the product box.
- • Why are my tweeters completely silent even though the mid-bass woofers are playing perfectly?
This is usually caused by missing the adjustable jumper configuration inside the large external crossover box. Open the plastic crossover chassis cover and verify that the metal jumper pins are securely pushed into the "TWT" level adjustment slots.
- • The high frequencies sound incredibly harsh and loud in my car. How can I tone down the treble?
The C3 crossovers have built-in equalization settings. Open the crossover casing and move the tweeter wire jumper from the "Reference" (REF) position to the "-3.0 dB" slot to instantly reduce the volume and brightness of the silk dome tweeters.
- • Why did my mid-bass speakers lose all their punch and sound hollow after changing my amplifier settings?
Your amplifier's High-Pass Filter (HPF) is likely set too high. If the crossover frequency is dialed past 100Hz, it cuts out essential mid-bass notes. For optimal punch, adjust your amplifier or head unit HPF setting down to between 60Hz and 80Hz.
- • Why do my tweeters intermittently cut out or stop working when I crank up the volume, but fix themselves later?
The C3 crossovers feature a solid-state electronic protection circuit. When your amplifier runs out of clean power and starts clipping, the circuit mutes the tweeters to save them from burning out. Lowering the volume allows the circuit to cool and reset.
- • Can I safely power the C3-600 system directly off my factory head unit without an amplifier?
You can, but it is highly discouraged. The C3-600 features heavy-duty voice coils designed for high-end fidelity and needs clean power to shine. Factory radios produce minimal power, causing early audio distortion (clipping) long before the speakers reach their true potential.
- Diameter : 6 Inch
- Sensitivity : 89.5 dB
- Frequency Response : 50-25000 Hz
- Peak Power Handling : 225 Watts
- RMS Power Handling : 75 Watts
Features:
- Flexible Configuration: JL Audio's Evolution C3 speaker systems allow you to choose the best configuration for great sound in your vehicle.
- Component System: Mount the woofers and tweeters separately for incredibly detailed, rich, and crystal-clear music, perfectly positioned in your listening space.
- Coaxial Speaker: In vehicles with limited space, mount the C3 tweeter inside the woofer to create a full-range, coaxial speaker that performs with breathtaking impact.

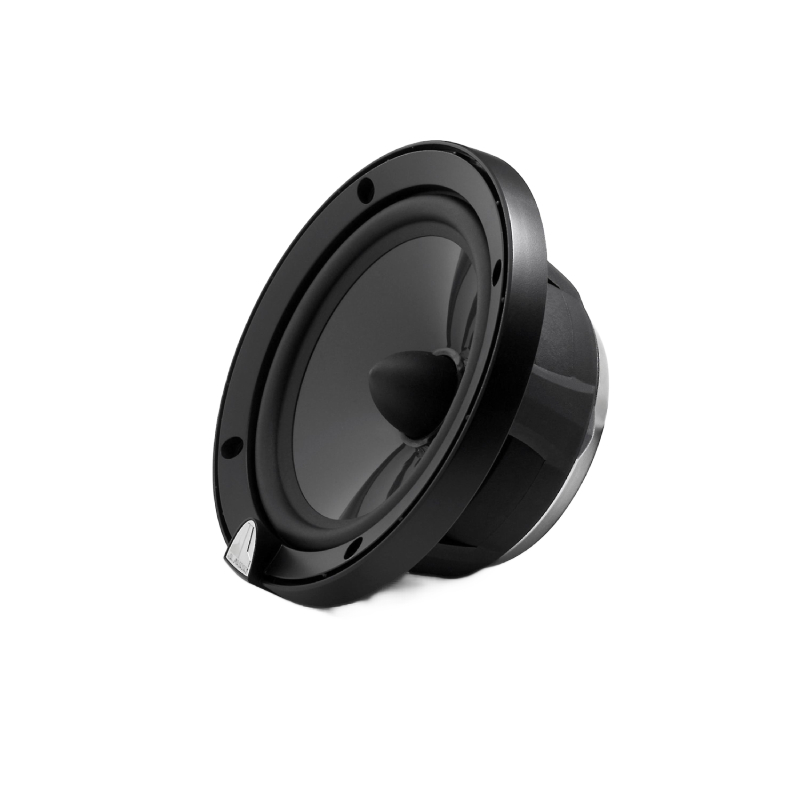

- Woofer Design: The C3-600 component system uses a 6" mica-filled polypropylene woofer that covers the midrange and low frequencies strongly and accurately.
- Frame Construction: A specially designed frame resists unwanted resonances, keeping your music free from interference.
- Phase Plug: If mounting the tweeter separately, install a phase plug into the woofer for smooth sound dispersion throughout your vehicle.
- Tweeter Performance: C3 tweeters use ferrofluid cooling to handle extreme levels of high-frequency information without overheating.
- 1" Silk Dome Tweeters: Mounted separately or coaxially, these tweeters broadcast crisp musical detail evenly without harshness.
- Outboard Crossovers: Separate outboard crossovers use premium components to direct the signal flow to your woofers and tweeters.
- Customizable Settings: Select from three midrange settings and four levels of tweeter presence to match the speaker system to your listening environment.
Specifications:
- Speaker Size: 6
- Design: 2-way
- Tweeter Design: 1" Dome
- Impedance (Ohms): 4
- Tweeter Composition: Silk
- Woofer Composition: Mineral-filled poly
- Woofer Surround: Butyl Rubber
- Sensitivity (1W at 1 meter): 89.5
- Sensitivity at 2.83 volts: N/A
- Frequency Response: 50 - 25k Hz
- Minimum RMS Wattage: 25
- Maximum RMS Wattage: 75
- Peak Power Handling (Watts): 225
- Top-mount Depth (Inches): 2 1/2
- Bottom-mount Depth (Inches): N/A
- Cutout Diameter or Length (inches): 5
- Mounting Height (Inches): 0.405
- UPC: 699440990349
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
